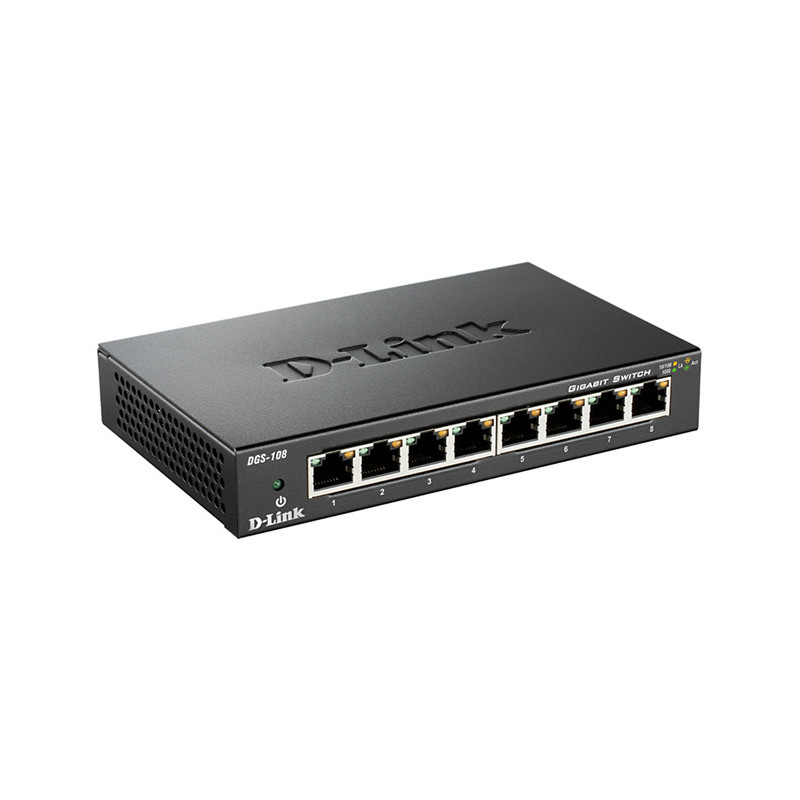

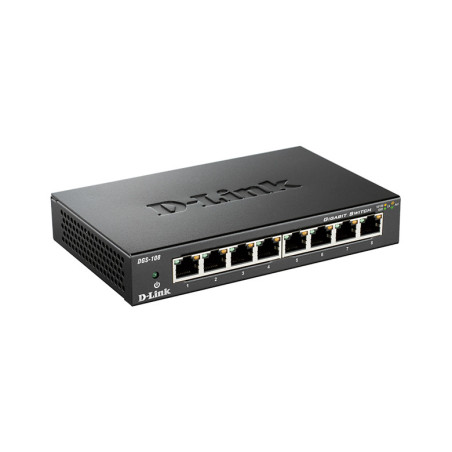

Switch 8 Puertos Gigabit DGS-108 - D-Link

8 puertos Gigabit (1000 Mbps) aprovecha cada mega de tu conexión

Ideal para Streaming y Gaming 4K

Sin gestión, enchufar y listo, compatible con cualquier router

IGMP Snooping para acelerar Televisión por Internet (IPTV)

Carcasa metálica

Especificaciones técnicas

Switching Fabric

• 16Gbps

Standards

• IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)

• IEEE 802.3u 100BASE-TX Fast Ethernet (twisted pair copper)

• IEEE 802.3ab 1000BASE-T Gigabit Ethernet(twisted - pair copper)

• ANSI/IEEE 802.3 NWay auto-negotiation

• IEEE 802.3x Flow Control

• IEEE 802.1pQoS

• IEEE 802.3az Energy-Efficient Ethernet (EEE)

Protocol

• CSMA/CD

Data Transfer Rates

• Ethernet:

- 10 Mbps (half duplex), 20 Mbps (full duplex)

• Fast Ethernet:

- 100 Mbps (half duplex), 200 Mbps (full duplex)

• Gigabit Ethernet:

-2000 Mbps (full duplex)

Topology

• Star

Network Cables

• 10BASE-T:

- UTP CAT 3, 4, 5/5e (100 m max.)

- EIA/TIA-586 100-ohm STP (100 m max.)

• 100BASE-TX, 1000BASE-T:

- UTP CAT 5/5e (100 m max.)

- EIA/TIA-568 100-ohm STP (100 m max.)

Media Interface Exchange

• Auto MDI/MDIX adjustment for all ports

LED Indicators

• Per port: Link/Activity/Speed

• Per device: Power

Transmission Method

• Store-and-forward

MAC Address Table

• 8K

MAC Address Learning

• Automatic update

Packet Filtering/Forwarding Rates

• Ethernet: 14,880 pps per port

• Fast Ethernet: 148,800 pps per port

• Gigabit Ethernet: 1,488,000 pps per port

RAM Buffer

• 128KB per device

Jumbo Frames

• 9,000 Bytes

QoS

• 4 Queues, strict mode
